Automation components & systems Hydraulic Valves 20 liters to 200 liters
We manufacture and export automation power components and actuators
We manufacture and export a wide range of hydraulic control valves, including monoblock and split
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
Nom. Pressure
(MPa) | Max.Pressure
(MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) | hydraulic oil |
Tem.rang
(ºC) | Visc.rang
(mm2/S) | filtrating accuracy
(μm) |
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
DCV directional control valve have the features of below
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.

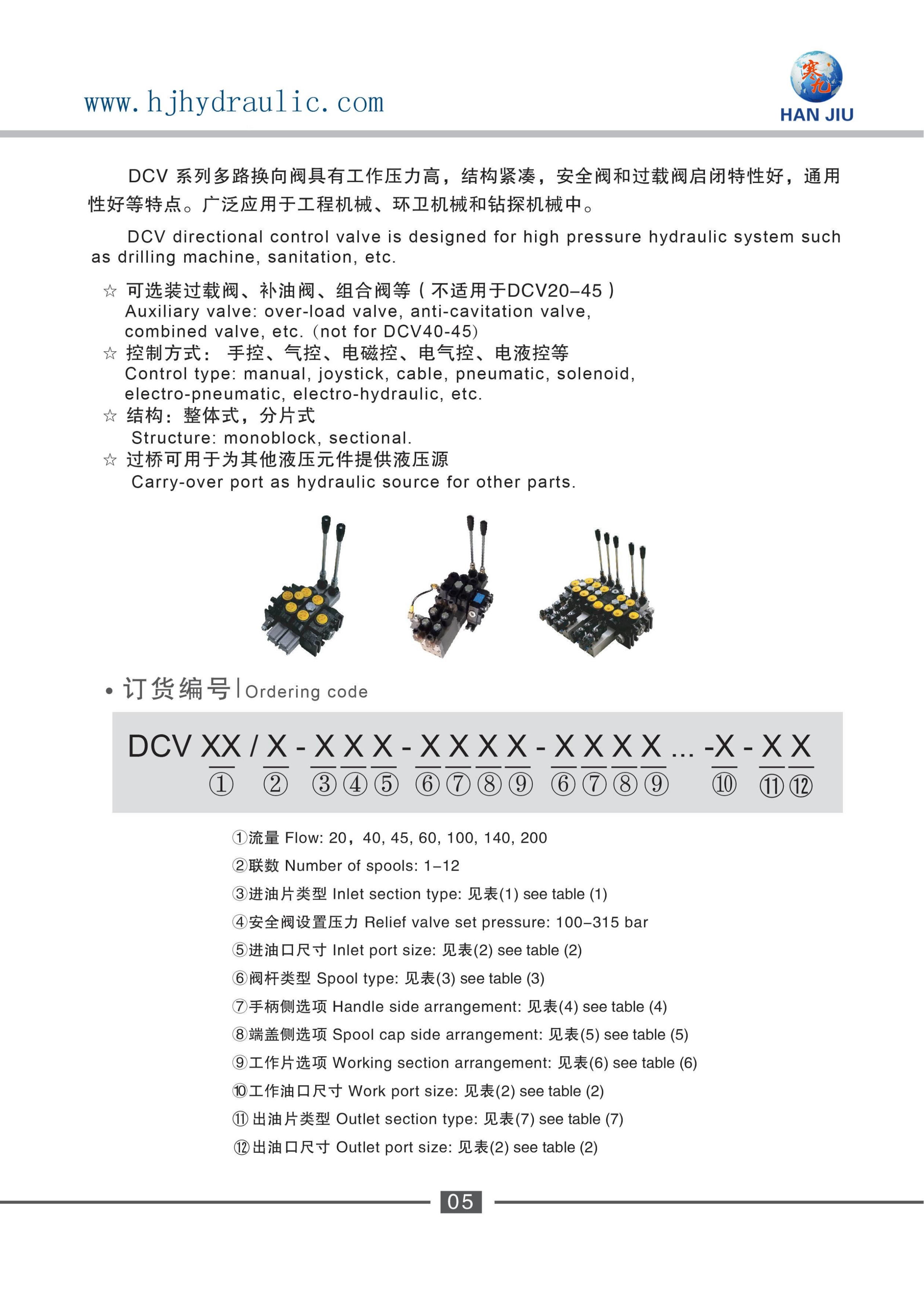

How to choose the model you need?
DCV XX / X - X X X - X X X X - X X X X ... -X - X X
(1) Flow: 40, 45, 60, 100, 140, 200
(2) Number of spools: 1-12
(3) Inlet section type: see table (1)
(4) Relief valve set pressure: 150-315 bar
(5) Inlet port size: see table (2)
(6) Spool type: see table (3)
(7) Spool handle side arrangement: see table (4)
(8) Spool cap side arrangement: see table (5)
(9) Working section arrangement: see table (6)
(10) Work port size: see table (2)
(11) Outlet section type: see table (7)
(12) Outlet port size: see table (2)
You can also find the structure of the valves at the bottum of this artical
